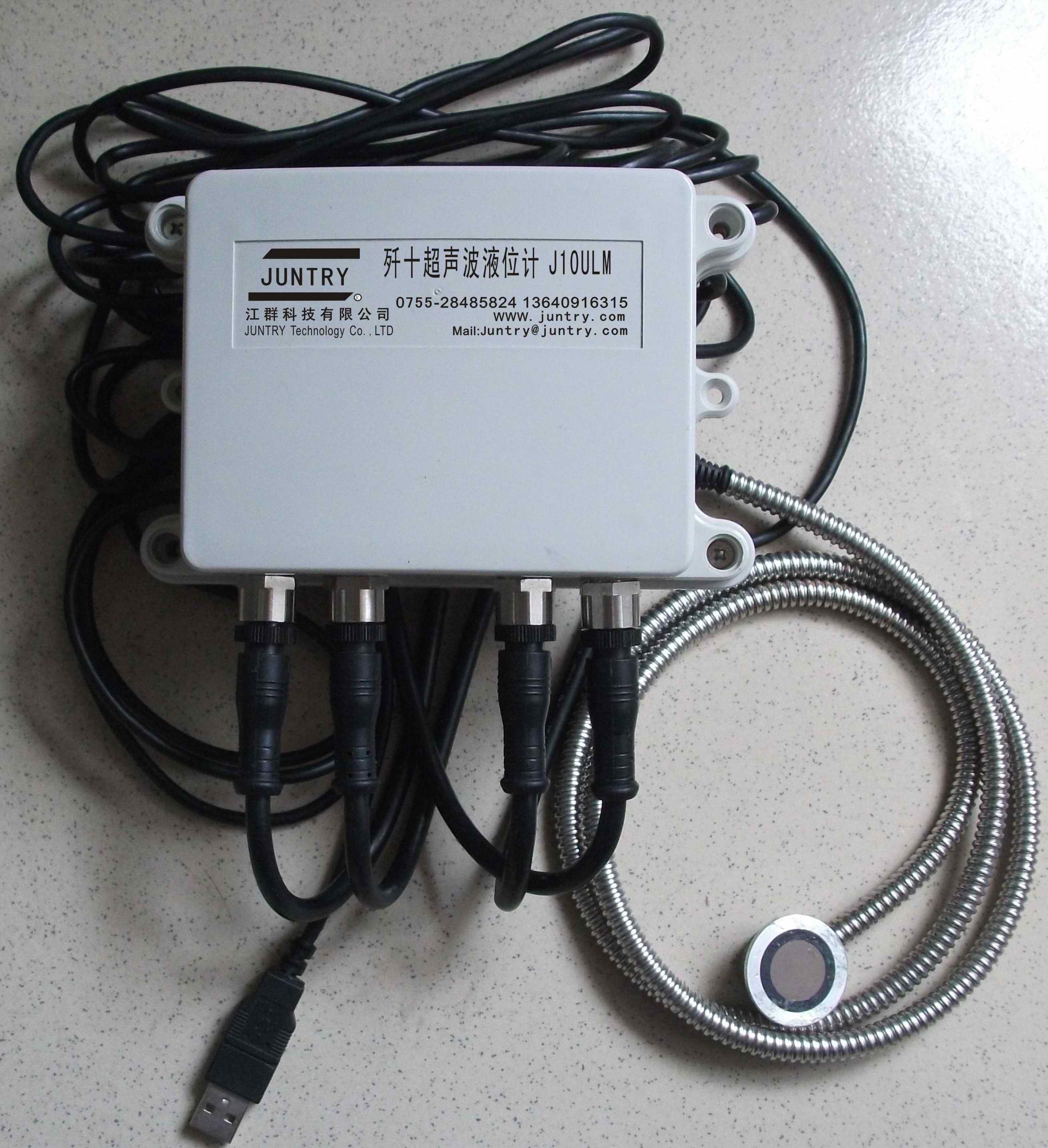

J10ULM  Ultrasonic Liquid-level meter

  The measurements are realized by the ultrasonic radiator installed directly on the external bottom part of the fuel tank and data processing box. The ultrasonic Liquid-level meter can  measure levels of diesel and petrol or other liquid materials depending on software settings.

Description

J10ULM Ultrasonic fuel-level meter is used for fuel level measurement in vehicle fuel tanks in order to control fuel consumption.

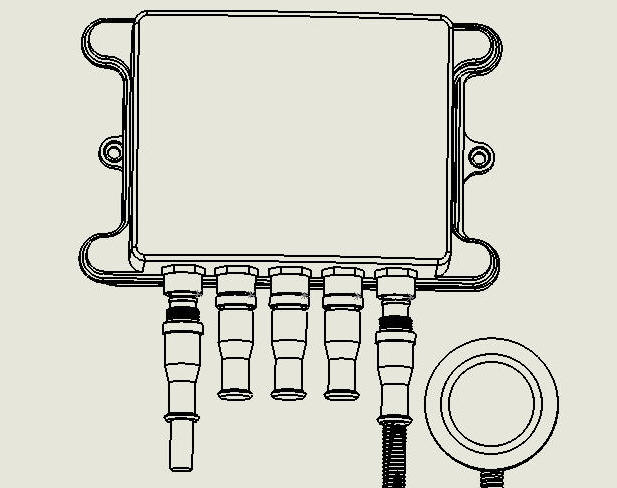

The measurements are realized by the ultrasonic radiator installed directly on the external bottom part of the fuel tank and data processing box. The ultrasonic fuel-level meter can measure levels of diesel and petrol or other liquid materials depending on software settings. contactless ultrasonic liquid-level meter for the tanks up to 1 meter height. Measurement of the fuel and oil level in vehicle tankers, railway tankers, fuel tanks of motor ships and diesel locomotive etc. J25ULM modification additionally measures density of the liquid.

Application:
  Contactless ultrasonic fuel-level meters are designed for measuring liquid level without putting it in a liquid. They could be used as being connected to a GPS/ GPRS tracker so as an autonomic device.
  The contactless ultrasonic fuel-level meters conform to the most strict fire and explosion safety requirements.
The ultrasonic fuel-level meters could measure level of the following liquids:
 Gasoline,Diesel,Liquefied gas, Liquefied CO2, Alcohol, Milk,Acid,Kerosene,Paint,Solvent …..and so on liquid.
Default setting of the measuring liquid is diesel. For the other liquids corresponding settings should be made.
Specific features of the ultrasonic fuel-level meters:
1. Superimposed method of the installation without tank drilling
2. No contact with the fuel
3. High fire and explosion safety
4. High measurement accuracy
5. Thermo compensation
6. Compatible with any GPS/ GPRS tracker
7. Possibility of autonomic usage

Technical parameters

Power supply voltage: DC 9-36V

Max current consumption:100mA

Working temperature range:-40-+80ºC

Interface:

                  Analog 0.3 - 9.6 V,

                 frequency 500 - 1500 Hz,

                 digital EIA 485 (2 pcs.)

                 (halfduplex)

　　Technical parameters

                                                           J10ULM
