 ICTI      POF Transmitter Optical Module

　

        NO。268，Gushu 1 Road Gu Shu Cun Xixiao Baoan Area ShenZhen (China)

　

      Tel & Fax:0755-27481436



 NO.268，Gushu 1 Road Gu Shu Cun Xixiao Baoan Area ShenZhen (China)

　

文本框: ■ Applications   * DVD, CD, MD player   * Sound card   * Audio Equipment   * PC, notebook

■ Feature

　

* TTL interface compatible



* High transfer rate: 6-25Mbps (NRZ Signal)

　

* Build-in constant current LED driver

　

* Low power consumption

　

　

　

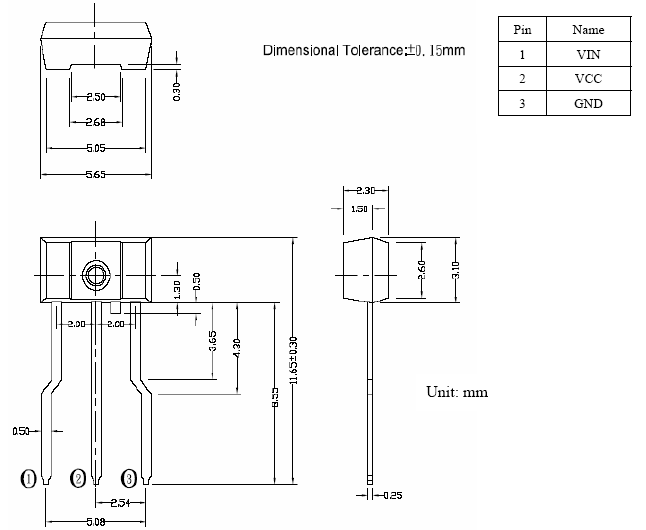

 ■A type Package Dimension                                                            ■ Pin Assign

　

　

　

　

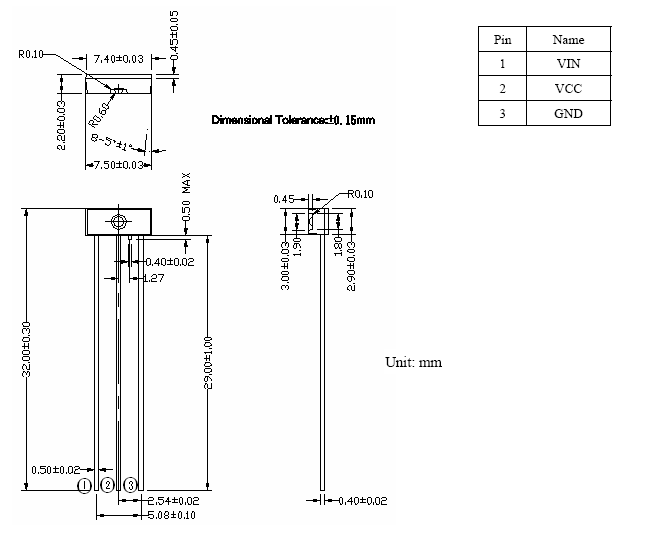

■F type Package Dimension                                                            ■ Pin Assign

　

　

　

　
Part No. Package Type Data Rate Supply Voltage, Vcc Dissipation Current, Icc Pulse Width Distortion, Δtw Propagation Delay Time
Mbps, NRZ V mA, max ns tPLH (ns,max) tPHL (ns,max)
　 　 　 　 　 　 　 　
  TX3005-A06 DC to 6 2.7 ~ 5.5 10 ±30 180 180
  TX3009-A13 DC to 13.2 2.7 ~ 5.5 10 ±25 100 100
  TX3009-E13 DC to 13.2 2.7 ~ 5.5 10 ±25 100 100
  TX3007-A50 DC to 50 2.7 ~ 5.5 10 ±8 35 35
TX3007-E50 DC to 50 2.7 ~ 5.5 10 ±8 35 35
　

　



　
