J10ULM  Ultrasonic Liquid-level meter

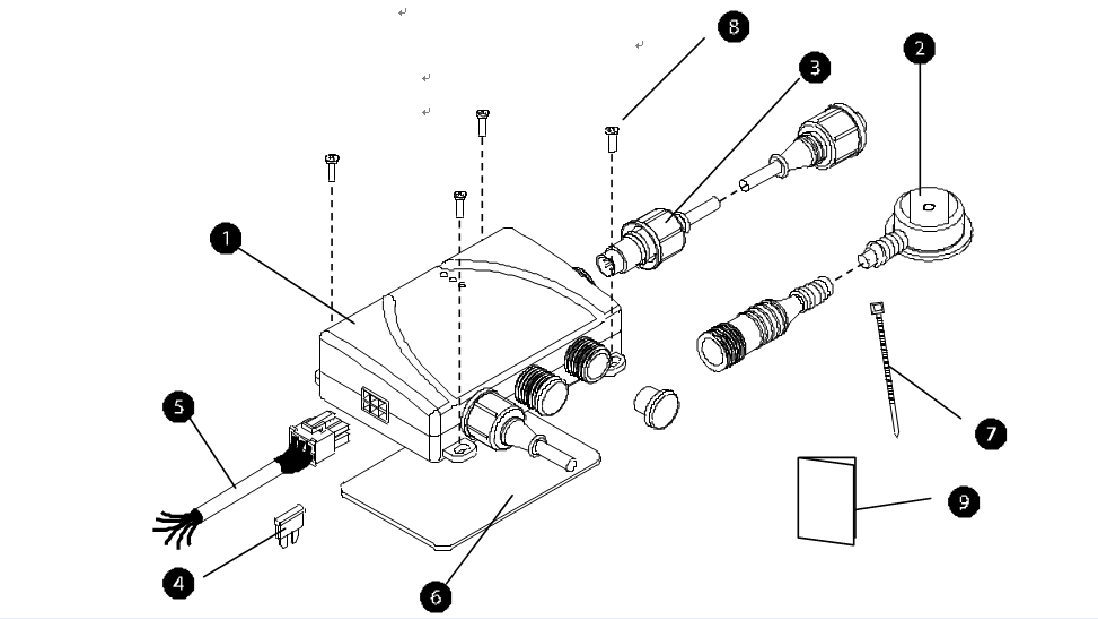

  The measurements are realized by the ultrasonic radiator installed directly on the external bottom part of the fuel tank and data processing box. The ultrasonic Liquid-level meter can  measure levels of diesel and petrol or other liquid materials depending on software settings.

Technical parameters

Power supply voltage: DC 9-36V

Max current consumption:100mA

Working temperature range:-40-+80ºC

Interface:

                  Analog 0.3 - 9.6 V,

                 frequency 500 - 1500 Hz,

                 digital EIA 485 (2 pcs.)

                 (halfduplex)

　　Technical parameters  J10ULM
